The 3x3x5





This project is in concept design phase. I used a new concept for a fully working 3x3x5 this design is based on fused parts of a square 1. You would need 1 3x3x3 as base and three 3x3x3 for the 18 cubies (corners only) and two Square 1. I still have to design the center piece.




The Square one part is fused in a 3x3x3 edge and a new cubie, the conbination is a extra layer of a 3x3x3. so in total this should be good for a 3x3x5 design

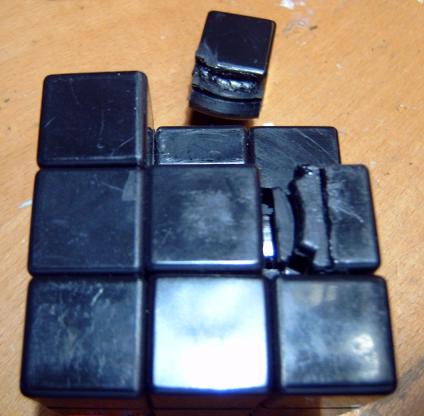

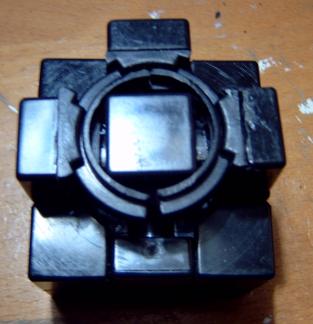

Top view egde with square 1 grove.

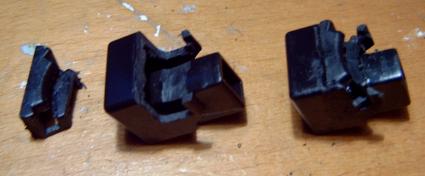

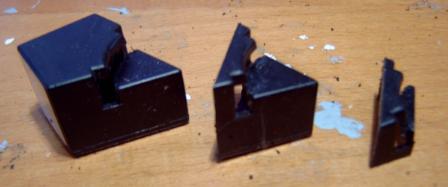

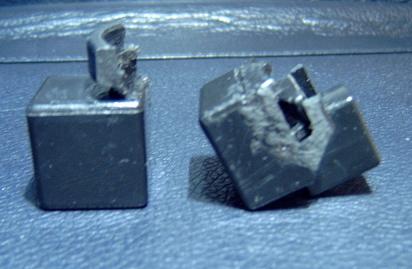

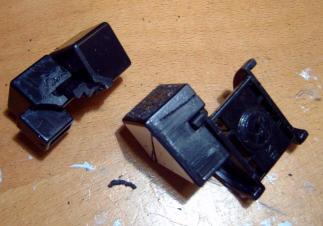

Edge parts 3x3x5, 2to make the inner edge piece saw from the square 1 corner the grove section.




And saw from a 3x3x3 edge just this section part, size of the section is 10 mm high, 8 mm width, from the front is 5 mm removed.

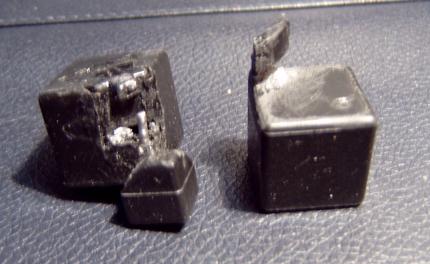

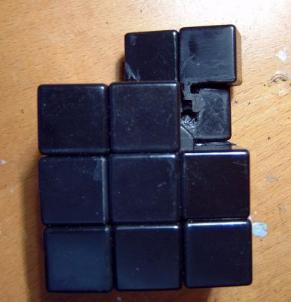

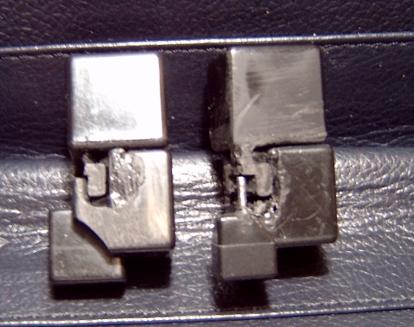

Corner parts I used a nail on the corner part, the plastic was to thin to hold.






The parts




As soon as I know how I must build the piece, I will describe this process.





To be continued .....

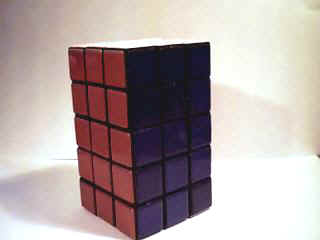

Example of a 3x3x5 how it looks like, this one is an extended 3x3x5 that I build




An Extended 3x3x5 is easy to make a friend builded this version in 5 hours
