This puzzle was build form a normal 3x3x3 Rubik's cube as kernel, it is a prototype.

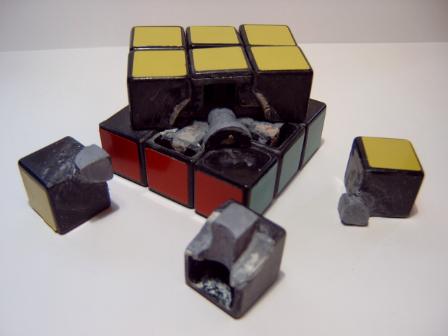

I used the 3x3x3 axle and cut down the top and bottom part, the extensions on the axle are the old centre's and I cut them in two halves. Two 1mm x 20mm steel needle pins are used to support the extensions on the axle.

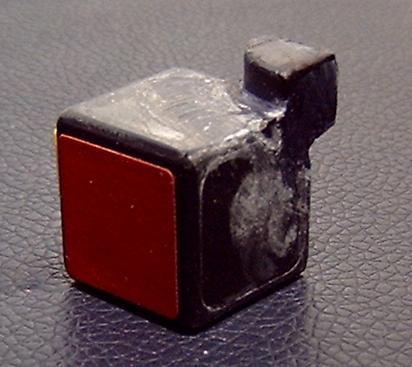

The corners of this 3x3x2 is a 3x3x3 corner, I just removed and clued the corner extension. One side is flattened.

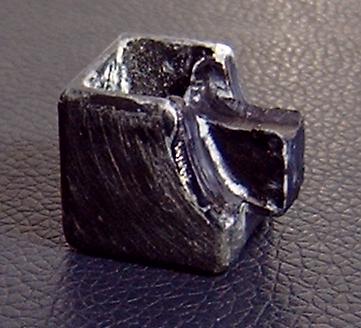

The edge is a 3x3x3 edge, with a grove in the middle that turns on the axle.
